4G/5G Private Network

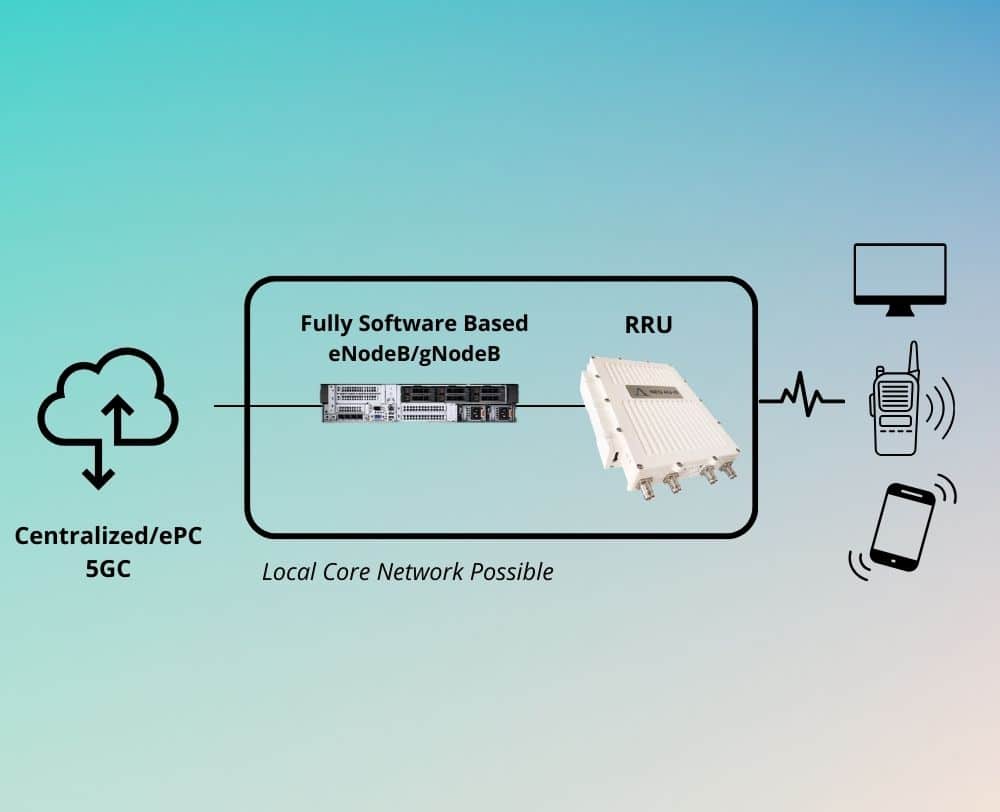

Standard SETUP
Basé sur ses propres produits RRU, AW2S est en mesure de fournir une solution 4G/5G complète pour configurer votre propre réseau privé.
- Full software based EnodeB/gNodeB running on COTS server
- Local ePC/5G Core possible / S1 interface for external Core
- Local application possible Server (MCX, IMS, Video streaming)
- Single or multi-cell capability

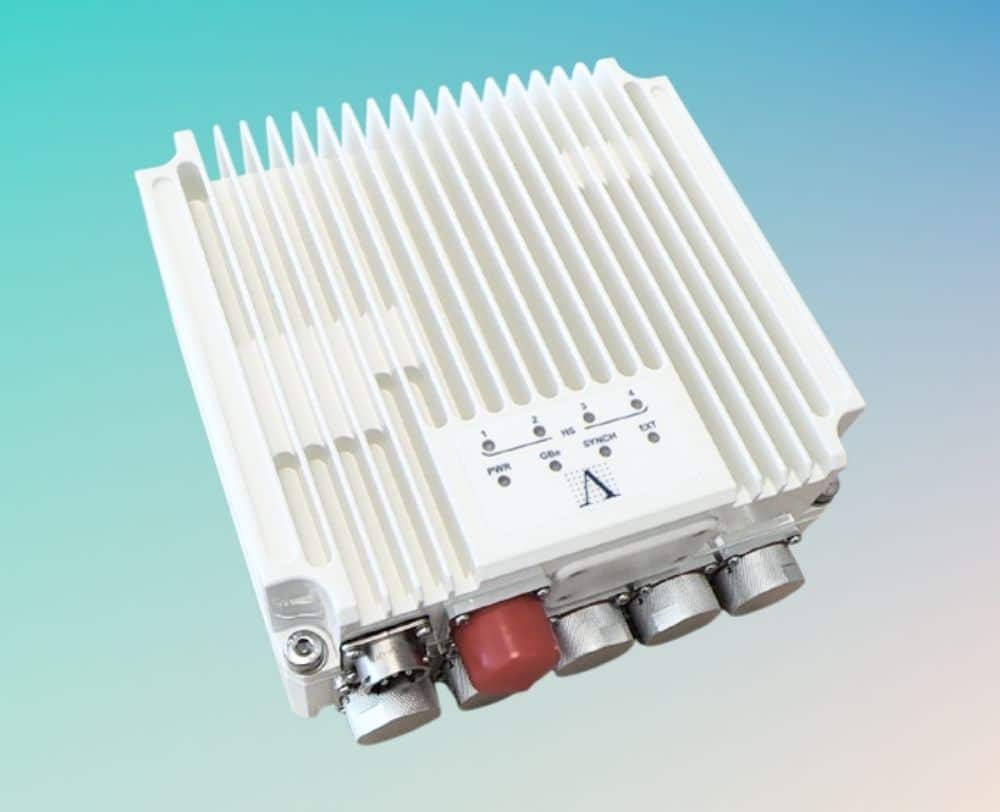

OUTDOOR eNodeB/gNodeB
Principales caractéristiques :
- X86 platform
- Full software based EnodeB/gNodeB
- Local ePC/5G Core possible
- Up to 4 CPRI – Compatible with any AW2S RU
- S1 interface for external Core
- Integrated GPS receiver + Antenna
- Local application Server (MCX, IMS, Video streaming)
- Compact Form Factor
- Mono or multi-cell capability
- IP65 for Outdoor applications
4G/5G ALL-IN-ONE
Principales caractéristiques :
- X86 platform
- Full software based
- EnodeB/gNodeB
- Local ePC/5G Core possible
- Local application server
- Integrated Radio Unit
- MIMO 2×2 or 4×4 ( Depending of the bands)
- Up to 5W per antenna port
- Up to 100MHz BW
- S1 interface for external Core
- Integrated GPS receiver
- Integrated mPCIe extension slot (Modem, Wifi )
- Compact Form Factor
- IP65 for Outdoor applications -40°C/+55°C
