AW2S PROVIDES STANDARD 4G/5G RRH/RRU PRODUCTS
We are at your disposal to develop customized solutions that meet your specific needs. For any inquiries, please contact us.
OUR STANDARD PRODUCTS

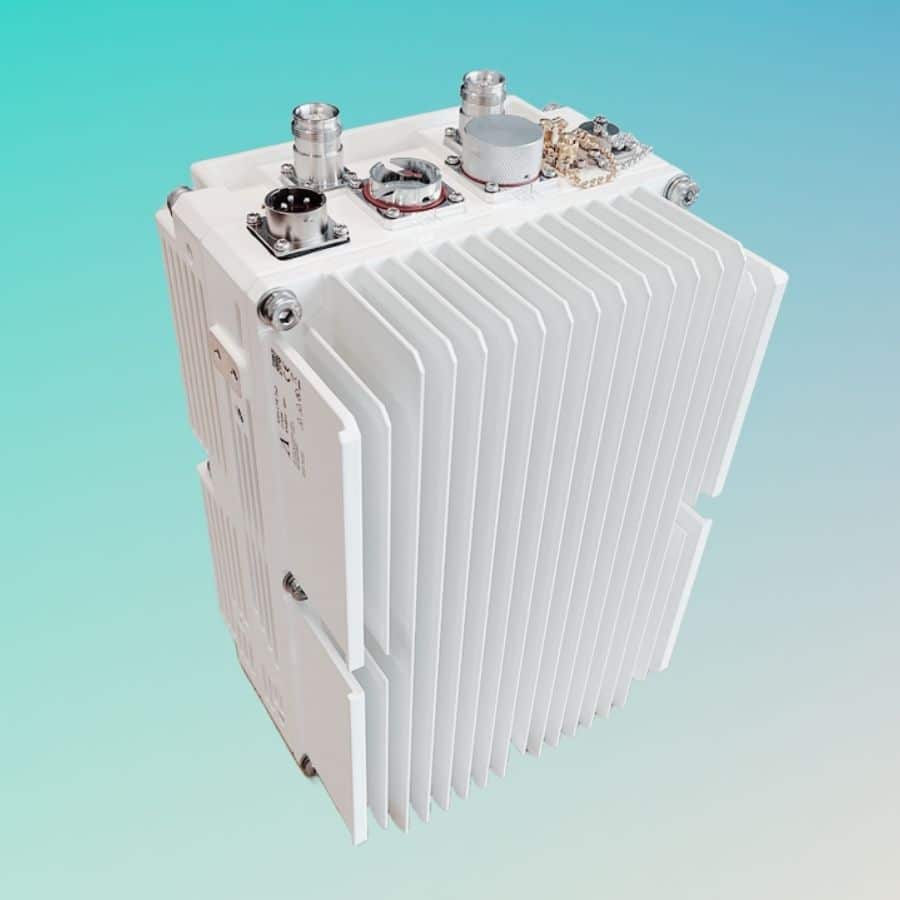

JAGUAR 2T2R 4G/5G RU
2T2R 4G/5G MACRO RU
Key features:
- Multi-standard (4G, NB-IoT, 5G)
- CPRI Split 8
- IBW up to 50MHz
- OBW up to 50MHz
- MIMO 2×2 up to 20W
- Available in different frequency bands TDD / FDD
- AISG v2.0
- IP65 for Outdoor application
Technical Data
| 4G Band | 5G Band | Frequency | Mode |
|---|---|---|---|
| 3 | n3 | 1800 | FDD |
| 5 | n5 | 850 | FDD |
| 7 | n7 | 2600 | FDD |
| 8 | n8 | 900 | FDD |
| 14 | n14 | 700 | FDD |
| 20 | n20 | 800 | FDD |
| 28 | n28 | 700 | FDD |
| 30 | n30 | 2300 | TDD |
| 31 | N.A | 450 | FDD |
| 38 | n38 | 2500 | TDD |
| 39 | n39 | 1900 | TDD |
| 40 | n40 | 2300 | TDD |
| 41 | n41 | 2500 | TDD |
| 42 | n78 low | 3400-3600 | TDD |
| 43 | n78 high | 3600-3800 | TDD |
| 68 | 700 | FDD |

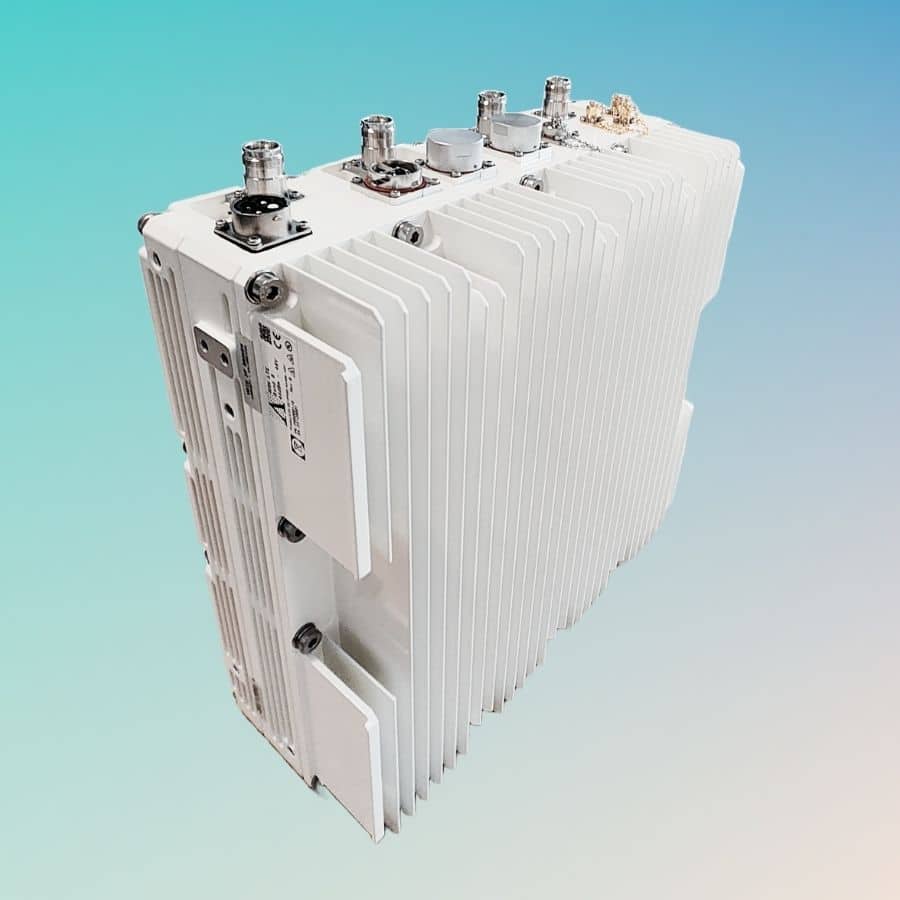

PANTHER 4T4R RU
4T4R 4G/5G MACRO RU
Key features:
- Multi-standard (4G, NB-IoT, 5G)
- 4T4R
- CPRI Split 8
- IBW up to 100MHz
- OBW up to 100MHz
- MIMO 4×4 up to 40W
- Available in different frequency bands TDD / FDD
- AISG v2.0
- IP65 for Outdoor applications
Technical Data
| 4G Band | 5G Band | Frequency | Mode | Power per Tx |
|---|---|---|---|---|
| B1 | n1 | 2100 | FDD | 40W |
| B2 | n2 | 1900 | FDD | 20W |
| B8 | n8 | 900 | FDD | 40W |
| B5 | n5 | 850 | FDD | 20W |
| B7 | n7 | 2600 | FDD | 20W |
| B38 | n38 | 2500 | TDD | 20W |
| B41 | n41 | 2500 | TDD | 20W |
| B71 | n71 | 600 | FDD | 20W |
| – | n78 | 3400-3800 | TDD | 2W |
| – | n77 | 3800-4000 | TDD | 2W |

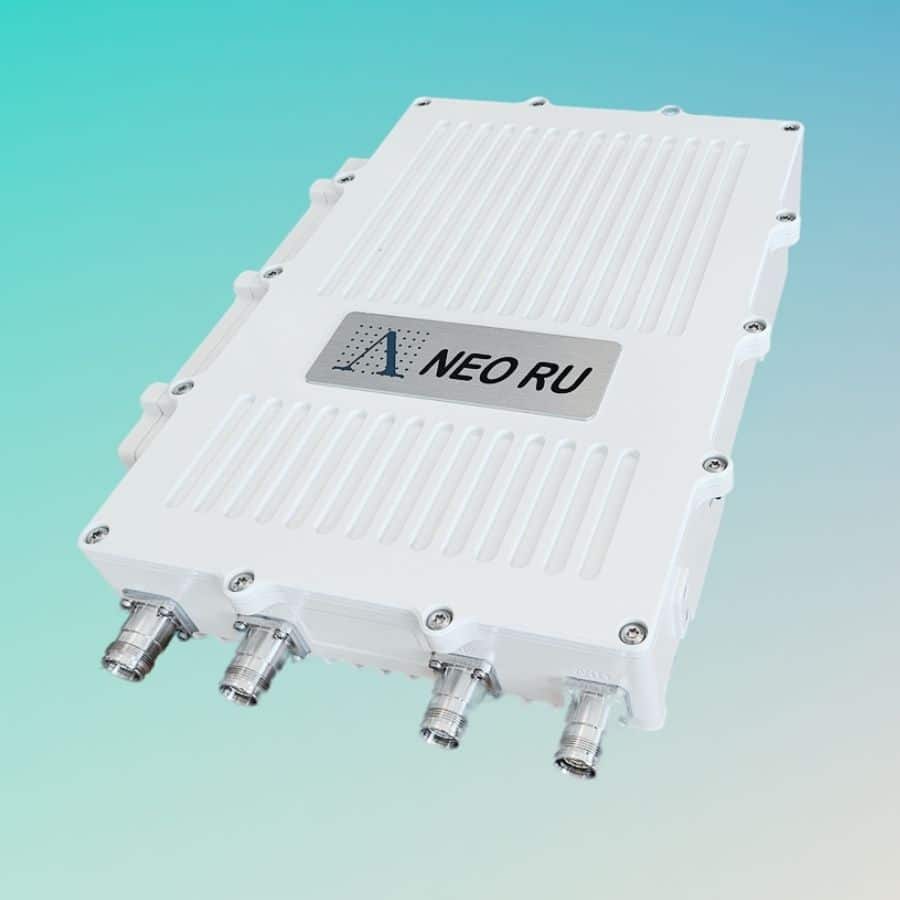

NEO Outdoor 5G RU
4T4R 4G/5G MEDIUM RU
Key features:
- Multi-standard (4G, NB-IoT, 5G)
- 4T4R
- CPRI Split 8
- O-RAN split 7.2 (eCPRI)
- IBW up to 100MHz
- OBW up to 100MHz
- MIMO 4×4 up to 5W
- Frequency flexibility TDD bands
- Easy deployment
- IP65
- Can be used for indoor or outdoor applications
Technical Data
| 4G Band | 5G Band | Frequency | Mode | Power per Tx |
|---|---|---|---|---|
| B40 | n40 | 2300 | TDD | 5W |
| B38 | n38 | 2500 | TDD | 5W |
| B41 | n41 | 2500 | TDD | 5W |
| – | n78 | 3400-3800 | TDD | 5W |
| – | n77 | 3800-4100 | TDD | 2W |

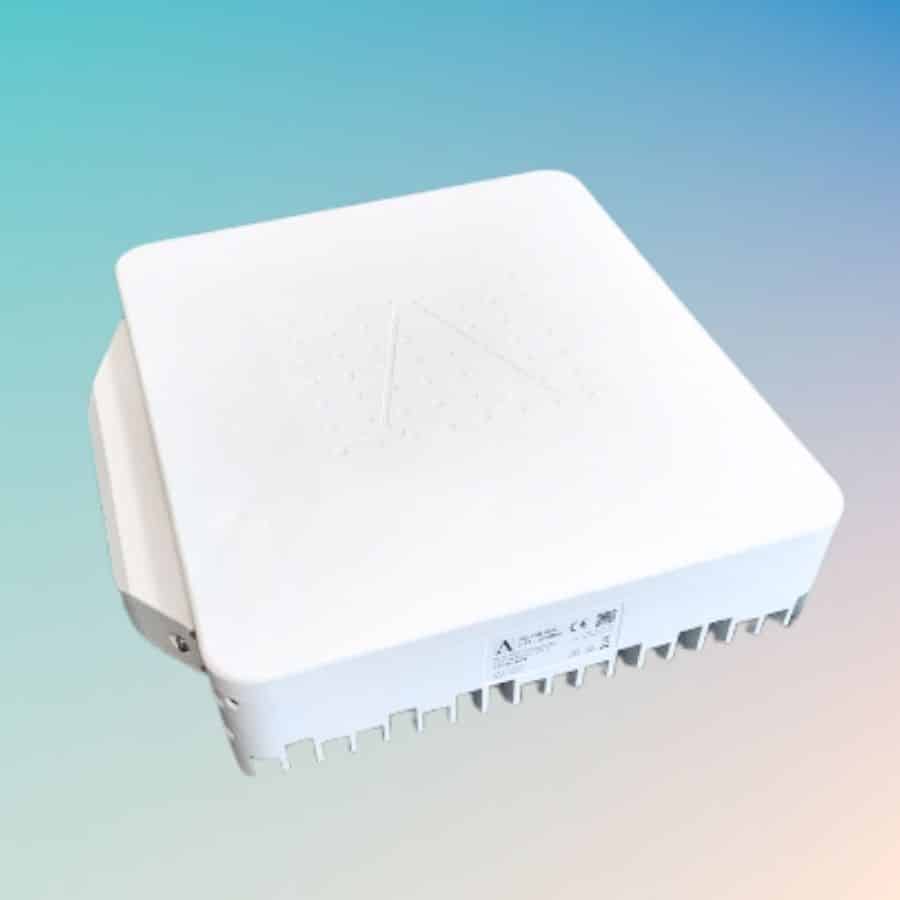

NEO INDOOR 5G RU
4T4R 4G/5G MICRO RU
Key features:
- Multi-standard (4G, NB-IoT, 5G)
- 4T4R
- CPRI Split 8
- O-RAN split 7.2
- IBW up to 100MHz
- OBW up to 100MHz
- MIMO 4×4 up to 4X250mW
- Integrated antenna
- IP54 for infoor applications
Technical Data
| 4G Band | 5G Band | Frequency | Mode | Power per Tx |
|---|---|---|---|---|
| B40 | n40 | 2300 | TDD | 250mW |
| B38 | n38 | 2500 | TDD | 250mW |
| B41 | n41 | 2500 | TDD | 250mW |
| – | n78 | 3400-3800 | TDD | 250mW |
| – | n77 | 3700-4200 | TDD | 250mW |
